|Models on this page: WE
1A SC 1583
AE 880 Ericsson
I never set out to collect
speakerphones, but do like
with unusual knobs, buttons and switches, so speakerphones naturally
me -- with a little help from collecting friends Don P., Alec S., Barry
and Walt A.

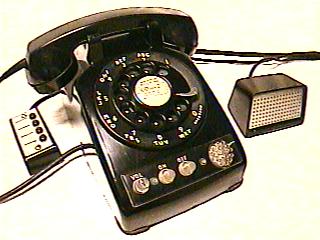

Western Electric 1A Speakerphone -- Uses a 'microphone' in the lower right corner of the base and a separate speaker. Also includes a WE549B metal 4-button box for signalling.
Marked 592B 2-55 Case is 'soft plastic'
In those days, they couldn't fit all the works in the phone base so click here to see where the wires go and for more detailed photos of the front controls.

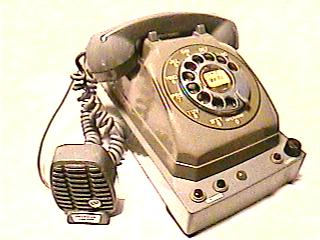

|Stromberg Carlson 1583 Speakerphone -- Uses a separate
microphone and speaker in the back of the metal base.
Marked 1583 AW Case is early gray 'soft plastic' handset is bakelite.

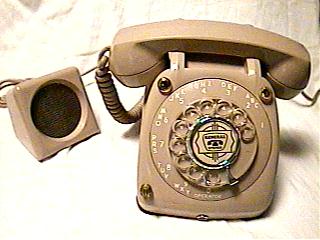

|AE88 SPEAKERPHONE -- The standard Automatic Electric
Model 80 desk set modified for speakerphone use. The on/off
switch is on the lower left, a signal lamp in the upper left and a
volume control in the
upper right. The microphone is behind the chrome grille below the
Marked NA88210 CSL S 11-59

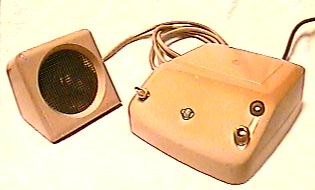

|AE 88AT Speakerphone -- The same works as above, but
without the phone.
Marked L7034 BO on base and L7033 BO on speaker
|AE TYPE 880 "EXECUTIVE MODEL" SPEAKERPHONE --
Obviously the "Suits" had trouble figuring out how to turn the standard
model on and off. In any case, they needed a bigger phone with a
bigger speaker on their bigger desks.
Marked Type 880 Monophone NB 88015 CSL 2-62
Somewhere there must be a model with "VOLUME" in big letters under the volume control.
|ERICSSON "LOUDSPEAKER TELEPHONE" -- Who stole the
handset? Actually, if it's a speakerphone (sorry, loudspeaker
telephone), who needs a handset? The buttons on top are for
on/off, volume (2 choices) and mute. Must be for the conference
Marked DBE 110-129 (ca. 1964)
(Thanks to Don Price for finding this one in Canada!)
